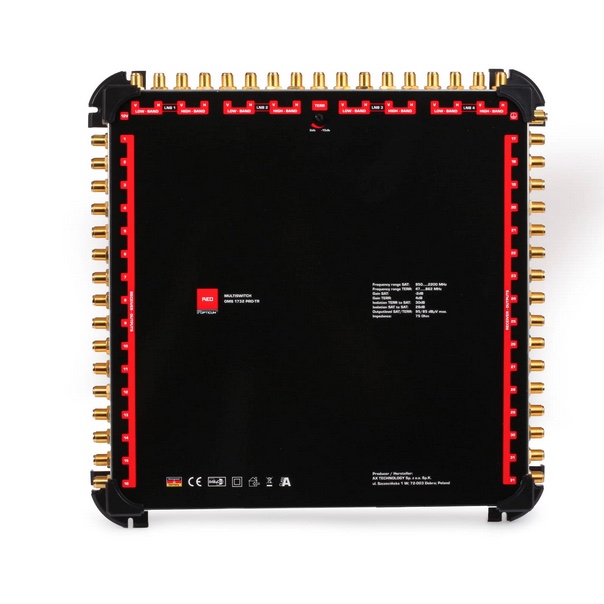

Πολυδιακόπτης για επέκταση εγκατάστασης εσωτερικής κεραίας του συστήματος δορυφορικής τηλεόρασης DVB-S2 και επίγειας DVB-T2.
Connection:
one, two, three or four Quattro converters
DVB-T terrestrial antenna
32 sat tuners
Technical data:
SAT frequency range: 950-2200 MHz
TER frequency range: 47-862 MHz
SAT gain (950-2150 MHz): -2 dB
TER gain (47-862 MHz): 4 dB
SAT to TER separation: 30 dB
TER to SAT separation: 28 dB
H / V polarization separation: 25 dB
Maximum SAT output level: 95 dBuV
Maximum TER output level: 85 dBuV
Input / output impedance: 75 Ohm
Polarity / band switching: 13V / 18V 13V / 22kHz-18V / 22kHz
Mains power: 230V AC 50Hz
Working temperature: 0 … + 55 oC
Dimensions: 326 x 264 x 42 mm (real dimensions)
Set contains:
Multiswitch
Power supply Wrench for screwing in the F connector
AC adapter
Original packaging
